Where to find box header footprints in KiCAD?

You can find all box headers in the Connector_IDC library in KiCAD. This library is from the standard set of KiCAD libraries, hence you don’t need to install it manually.

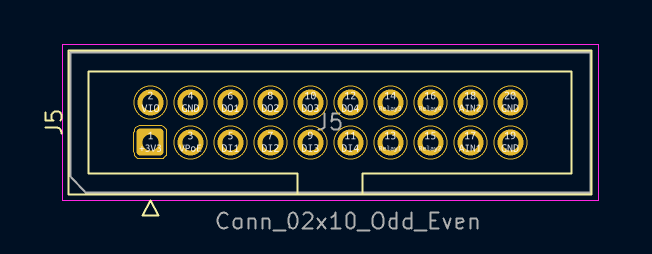

KiCAD Box Header
