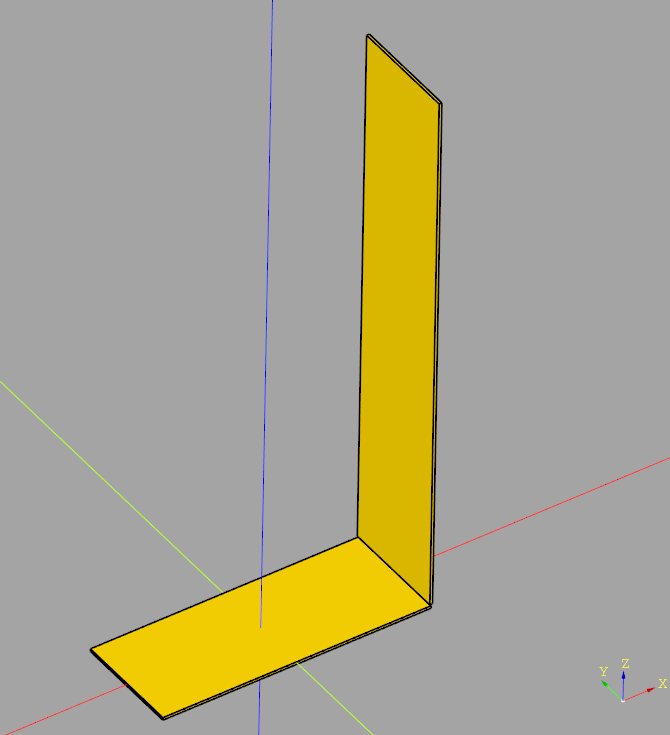

import cadquery as cq # Define dimensions base_length = 200 # 20cm base_width = 80 # 8cm plate_thickness = 2 # 2mm upright_height = 400 # 40cm # Create the base plate base_plate = cq.Workplane("XY").box(base_length, base_width, plate_thickness) # Create the upright plate # Position is set such that it aligns with the end of the base plate and stands upright upright_plate = cq.Workplane("XY").workplane(offset=plate_thickness).transformed(rotate=(0, 90, 0)).box(upright_height, base_width, plate_thickness).translate((base_length/2, 0, upright_height/2)) # Join the two parts into one final_part = base_plate.union(upright_plate) # Export to STEP final_part.val().exportStep("L-piece.stp")
