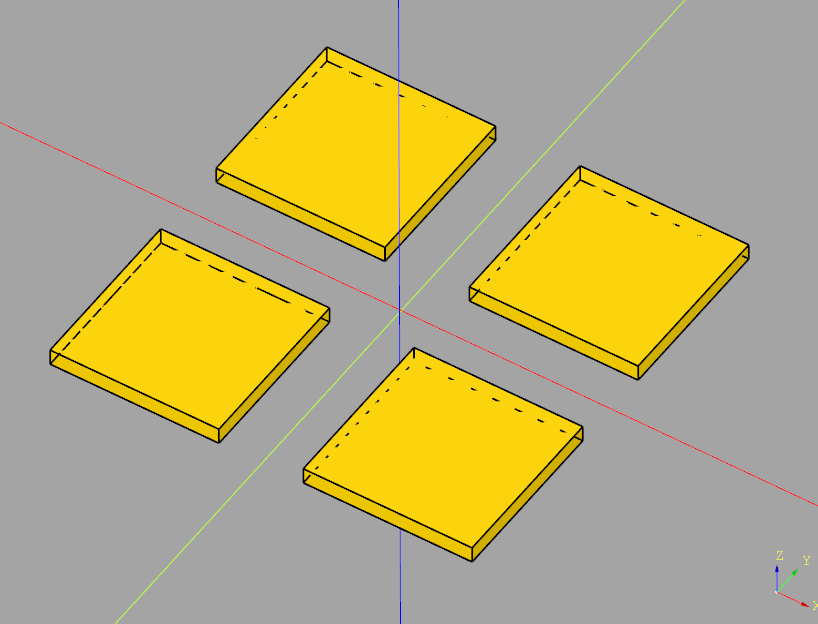

This example generates a 2x2
grid of 1x1mm
rectangles in a sketch, then extrudes it
import cadquery as cq # Create workplane (2d coordinate system for us to create the sketch in) wp = cq.Workplane("XY") # Create sketch & extrude result = wp.sketch().rarray( 1.5, # X distance between center points of rectangles 1.5, # Y distance between center points of rectangles 2, # Number of rectangles in X direction 2 # Number of rectangles in Y direction ).rect(1,1).finalize().extrude(0.1) result # This line is just to show the result in cq-editor or jupyter
