How to fix 'ValueError: No pending wires present' when extruding a face in CadQuery
Problem:
You are trying to extrude an existing face using CadQuery (cq) using code similar to
import cadquery as cq
box = cq.Workplane("XY").box(1, 1, 1)
face_to_extrude = box.faces(">Z")
result = face_to_extrude.extrude(2, taper=45)
But when you try to run this, you see the following error message:
{
"name": "ValueError",
"message": "No pending wires present",
"stack": "---------------------------------------------------------------------------
ValueError Traceback (most recent call last)
Cell In[3], line 7
3 box = cq.Workplane(\"XY\").box(1, 1, 1)
5 face_to_extrude = box.faces(\">Z\")
----> 7 result = face_to_extrude.extrude(2, taper=45)
File /usr/local/lib/python3.10/dist-packages/cadquery/cq.py:3078, in Workplane.extrude(self, until, combine, clean, both, taper)
3075 r = self._extrude(None, both=both, taper=taper, upToFace=until)
3077 elif isinstance(until, (int, float)):
-> 3078 r = self._extrude(until, both=both, taper=taper, upToFace=None)
3080 elif isinstance(until, (str, Face)) and combine is False:
3081 raise ValueError(
3082 \"`combine` can't be set to False when extruding until a face\"
3083 )
File /usr/local/lib/python3.10/dist-packages/cadquery/cq.py:3676, in Workplane._extrude(self, distance, both, taper, upToFace, additive)
3673 return facesList
3675 # process sketches or pending wires
-> 3676 faces = self._getFaces()
3678 # check for nested geometry and tapered extrusion
3679 for face in faces:
File /usr/local/lib/python3.10/dist-packages/cadquery/cq.py:3624, in Workplane._getFaces(self)
3621 rv.extend(el)
3623 if not rv:
-> 3624 rv.extend(wiresToFaces(self.ctx.popPendingWires()))
3626 return rv
File /usr/local/lib/python3.10/dist-packages/cadquery/cq.py:129, in CQContext.popPendingWires(self, errorOnEmpty)
123 \"\"\"
124 Get and clear pending wires.
125
126 :raises ValueError: if errorOnEmpty is True and no wires are present.
127 \"\"\"
128 if errorOnEmpty and not self.pendingWires:
--> 129 raise ValueError(\"No pending wires present\")
130 out = self.pendingWires
131 self.pendingWires = []
ValueError: No pending wires present"
Solution
Use
face_to_extrude.wires().toPending().extrude(...)
which will create pending wires from the selected face.

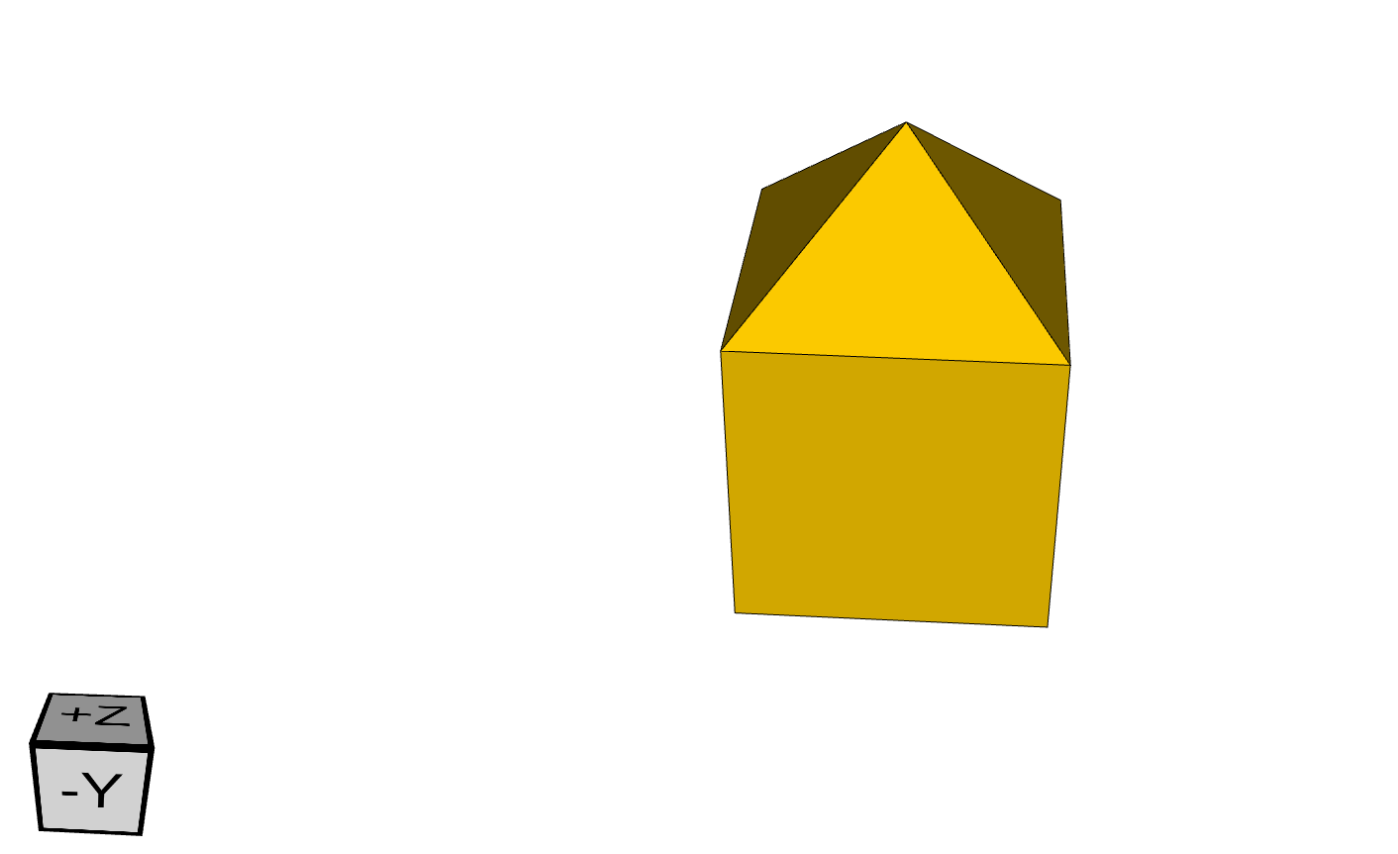

Full example:
import cadquery as cq
box = cq.Workplane("XY").box(1, 1, 1)
face_to_extrude = box.faces(">Z")
result = face_to_extrude.wires().toPending().extrude(2, taper=45)
